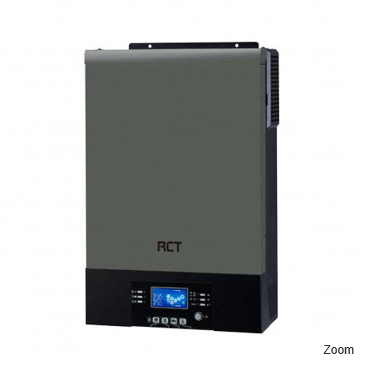

RCT Axpert M3 5K48 5kVA 5kW 48V Hybrid Inverter
2 YEAR CARRY IN WARRANTY + FREE SHIPPING IN SA
SKU RCT-AXPERT M3 5KVA
RCT MK3 is a high performance off-grid inverter with 120A MPPT solar charger and detachable LCD control module. If the 5000W is not enough for you, then the MK3 5kW can parallel up to 9 units. Battery independency design enhances this inverter to operate without a battery connected provided there is a grid connection.
Features
•Detachable LCD control module with multiple communications.
•Wide DC input voltage range.
•Built-in Bluetooth for mobile monitoring (Android App is available).
•Supports USB On-the-Go function.
•Reserved communication port for BMS.
•(RS485, CAN-BUS or RS232).
•Configurable AC/PV output usage timer and prioritization.
•Optional parallel operation up to 9 units.
•Inverter / Charger.
•Battery independent function provided there is a grid connection.
Specifications
•Model: RCT-AXMK3-5K-48V.
•Rated Power: 5000VA/5000W.
•Parallel Capability: Yes, 9 units.
Input
•Voltage: 230 VAC.
•Voltage Range: 170-280 VAC (For Computers), 90-280 VAC (For Home Appliances).
•Frequency Range: 50 Hz/60 Hz (Auto sensing).
Output
•AC Voltage Regulation (Batt. Mode): 230VAC ± 5%.
•Overload Capacity 5s@≥150% load; 10s@110%~150% load; 100ms @ ≥200% load.
•Efficiency (Peak): 93%.
•Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances).
•Waveform: Pure sine wave.
Efficiency
•Battery Voltage: 48 VDC.
•Floating Charge Voltage: 54 VDC.
•Overcharge Protection: 66 VDC.
Solar Charger & AC Charger
•Solar Charger Type: MPPT.
•Maximum PV Array Power: 5000W.
•MPP Range @ Operating Voltage: 120 ~ 430 VDC.
•Maximum PV Array Open Circuit Voltage: 450 VDC.
•Number of MPP Trackers: 2.
•Maximum Solar Charge Current: 100 A.
•Maximum AC Charge Current: 100 A.
•Maximum Charge Current: 100 A.
Physical
•Dimension, D x W x H (mm): 140 x 295 x .468
•Net Weight (kgs): 12.
•Communication Interface: USB/RS232/RS485/Bluetooth.
•IP Rating: IP41.
Environment
•Altitude: 1000m and de-rate by 1% for every 100m above 1000m.
•Humidity 5% to 95% Relative Humidity (Non-condensing).
•Operating Temperature: -10°C to 50°C (with over-temp protection in case inner component temperature reaches protection level.).
•Storage Temperature: -15°C to 60°C.
